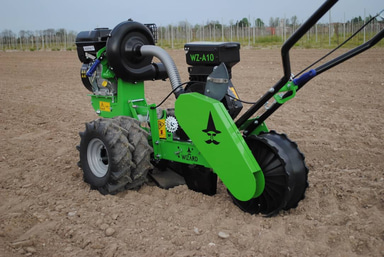

WZ-A Series Self Propelled | Vacuum Precision Seeders

$6,958.71$13,336.00 AUD excl gst

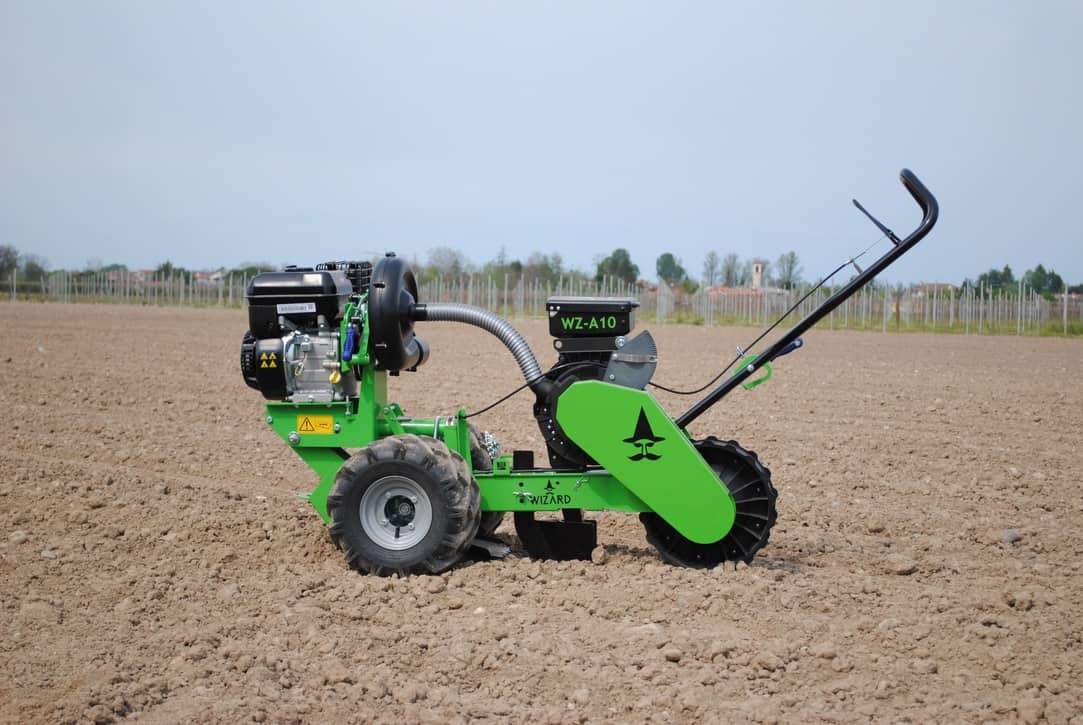

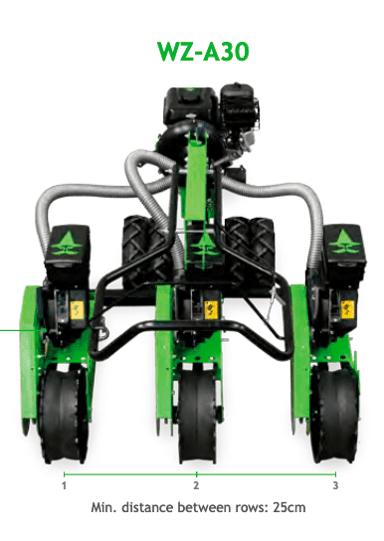

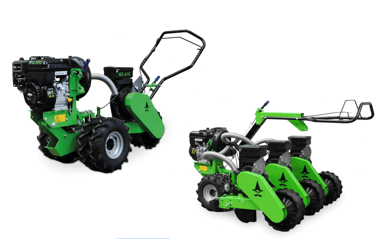

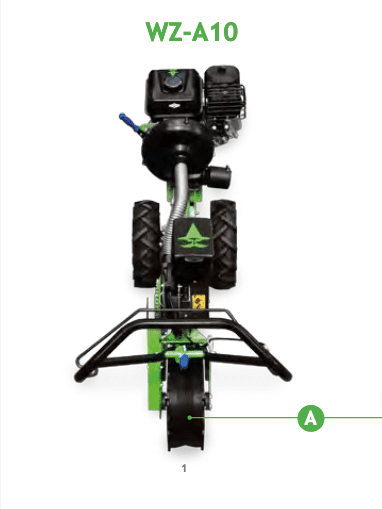

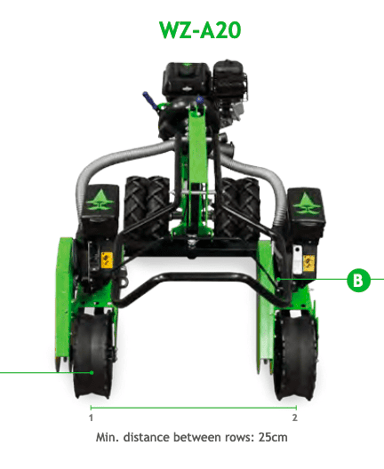

Wizard Planters WZ-A Series are self-propelled models powered by a 4-stroke engine with a 4.5 HP. It has 1, 2 or 3 sowing units.

Clear
Brand: Seeder Type: , , Product Type: ,

Series WZ-A is a small manually operated vacuum precision planter. The machine is mainly used to sow maize, chards, soy, sunflowers, rapeseed, beans, fennel, tomatoes, etc. This machine represents a valid alternative for markets where sowing is still mostly carried out by hand.

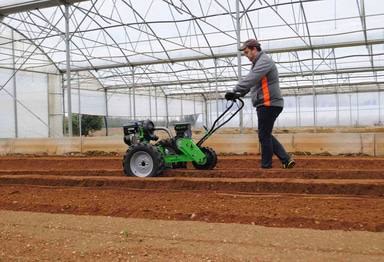

  • Suitable for open field, raised beds, greenhouse, short bed production, seed trials
  • Delivery of stocked items ex Aust ActiveVista warehouse, Australia wide 10-17 days,  New Zealand 14-21 days

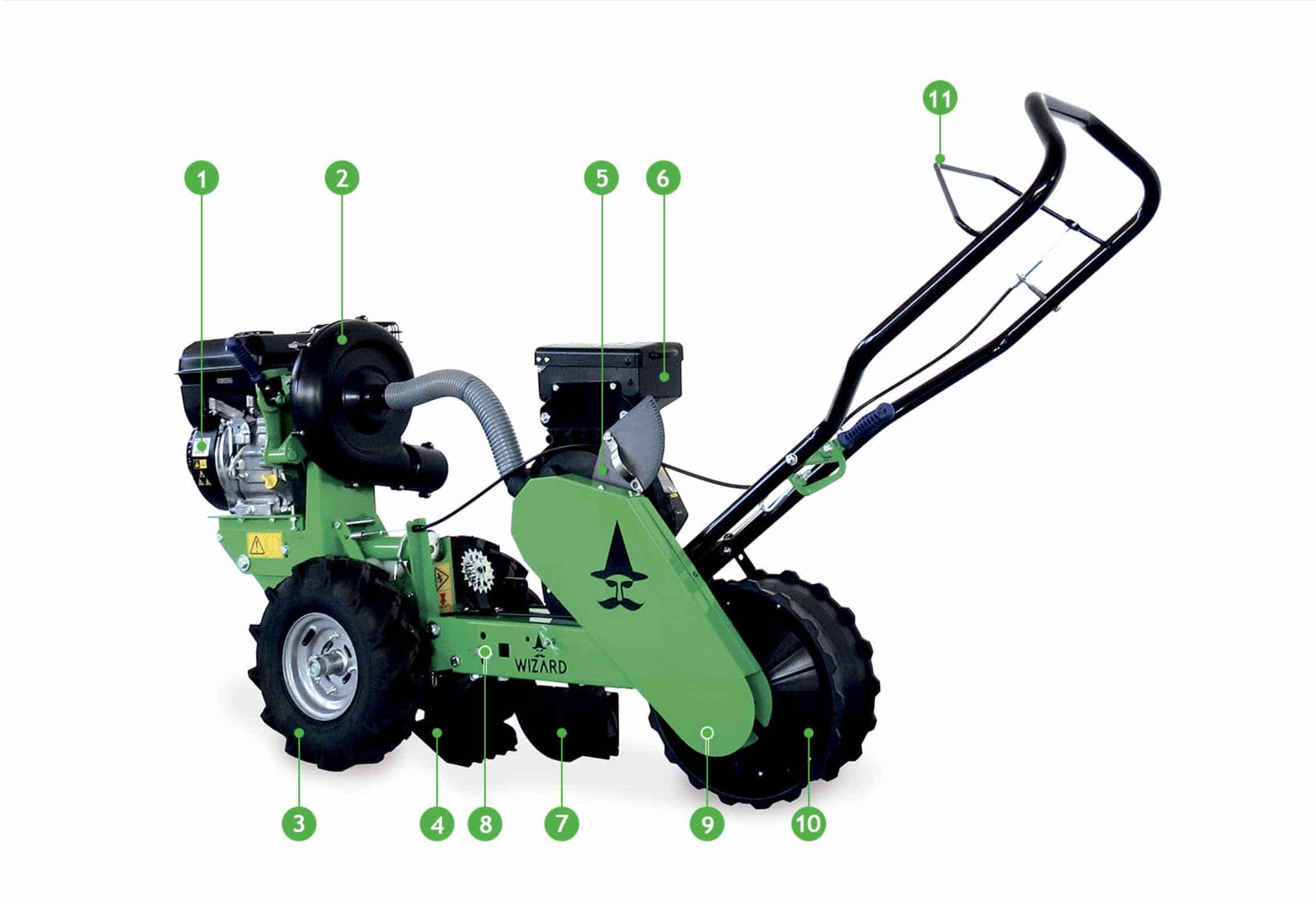

STANDARD EQUIPMENT

  • 4 stroke engine – 5 HP
  • Drive wheels with manual release
  • Sowing vacuum metering unit
  • 5 litre seed hopper
  • Kit for small seeds
  • Closing wheel
  • Gearbox
  • Adjustable shoe opener
  • Row marker
  • Soil leveler
  • Seed Discs supplied separately

Accuracy and adaptability

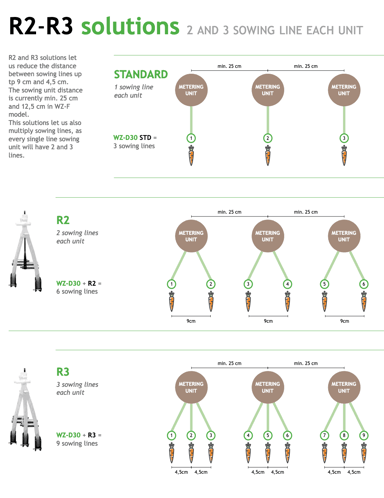

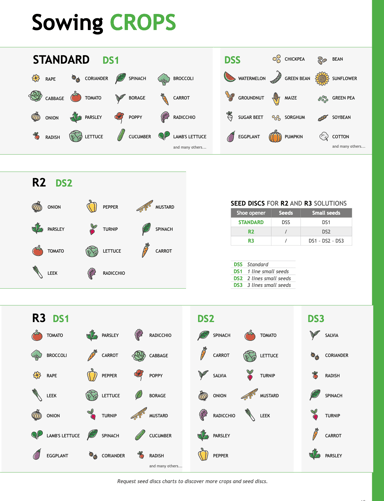

Wizard seeders, being equipped with a vacuum metering unit, stand out for their adaptability to different types of seeds. The seeder can sow small seeds such as carrots, onions, salads and many more up to larger seeds such as corn, beans, soybeans and many others. The change of the type of seed and the sowing distance on the row is made with simple and quick adjustments. The seed metering unit is designed to work even at much higher speeds than the actual working speed, this guarantees high precision. The adaptability of the Wizard vacuum metering unit is also given by the sowing systems R2 and R3, allowing two and three row lines with each of small vegetable seed per sowing unit.

These systems transform each single sowing unit with 1 line into 2 and 3 sowing lines in a very short time and without using tools. They can be applied to all our models and have the advantage that the seeder can be transformed in a short time and therefore switch from sowing pumpkin, courgettes, corn etc. to the specific sowing of vegetables quickly. Our planters are adaptable to a wide range of users as well as crops. They can be used in greenhouse and in open field, by seed producers or by those who have small plots of land to reduce costs.



Modularity and manageability

The modularity of our seeders allows to satisfy the need, by adapting the same machine from sowing crops that need a large surface for the germination, such as pumpkin, corn, courgettes, melons etc. to crops that need less surface like most vegetables. The gearbox mounted on each sowing unit allows great modularity and customization of the seeders.

This modularity allows considerably reduced the parking dimensions. The reduced weight and size of the Wizard range allows easy handling, even inside greenhouses as well as in transportation. All this while maintaining the sowing quality that distinguishes precision pneumatic sowing.
