Star-Lock Anchor Kit | Caterpillar Tunnels
$170.00gst incl.
Provide superior holding strength to your Caterpillar Tunnel. Deliver more than double the holding strength to hoop footings in storm winds. Heavy duty components make up this easy to install kit.
Categories
Tags
Brand Catalogue
Compatibility
- For use with all Cocoon and Gothic Caterpillar Tunnels, not compatible with the Agrarian High Tunnel (TBA)

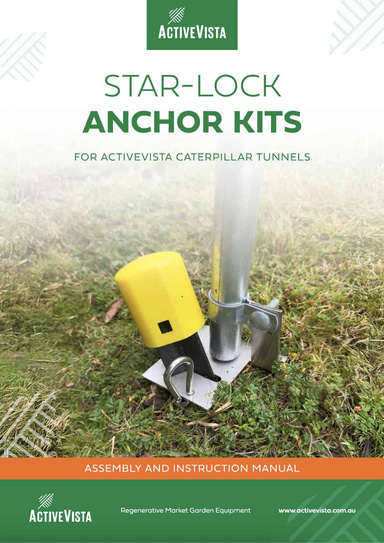

Assembly and Instruction Guide
- pdf download HERE

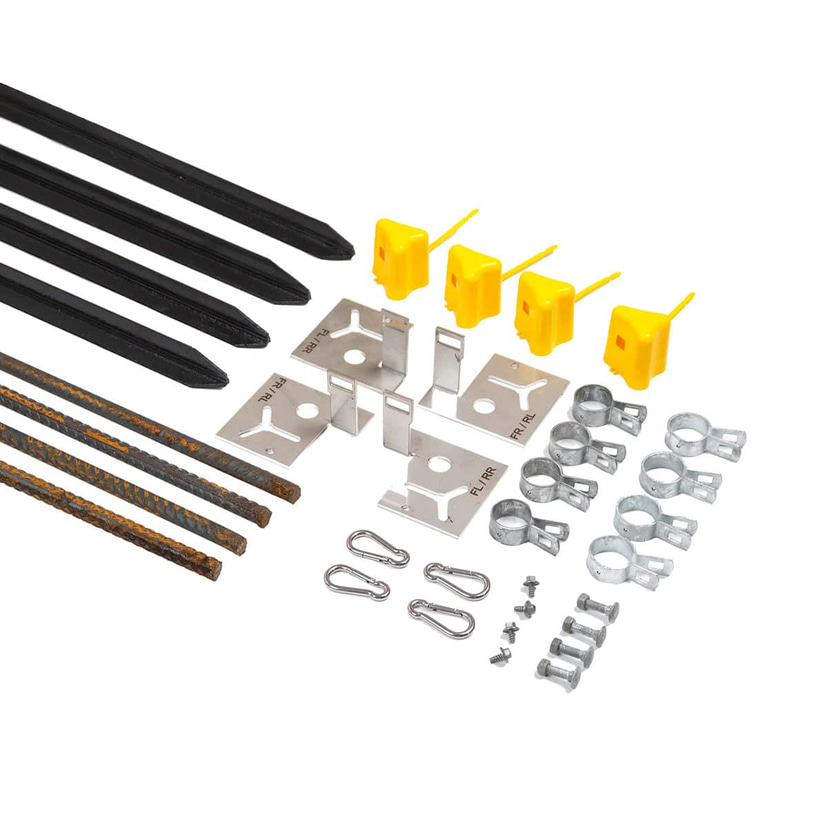

Component list
A. 4 x 32mm Brace Band + Nut and Bolt
B. 4 x Carabiners
C. 4 x Rebar Footing Rod | 1000mm x 18mm (N18) Deformed rod
D. 1 x 5/16″ Nutsetter Driver
E. 2 x Self Tapping Screws 20mm x 12g x 5/16″
F. 4 x Short Bolt
G. 4 x Heavy Duty Star Picket 900mm

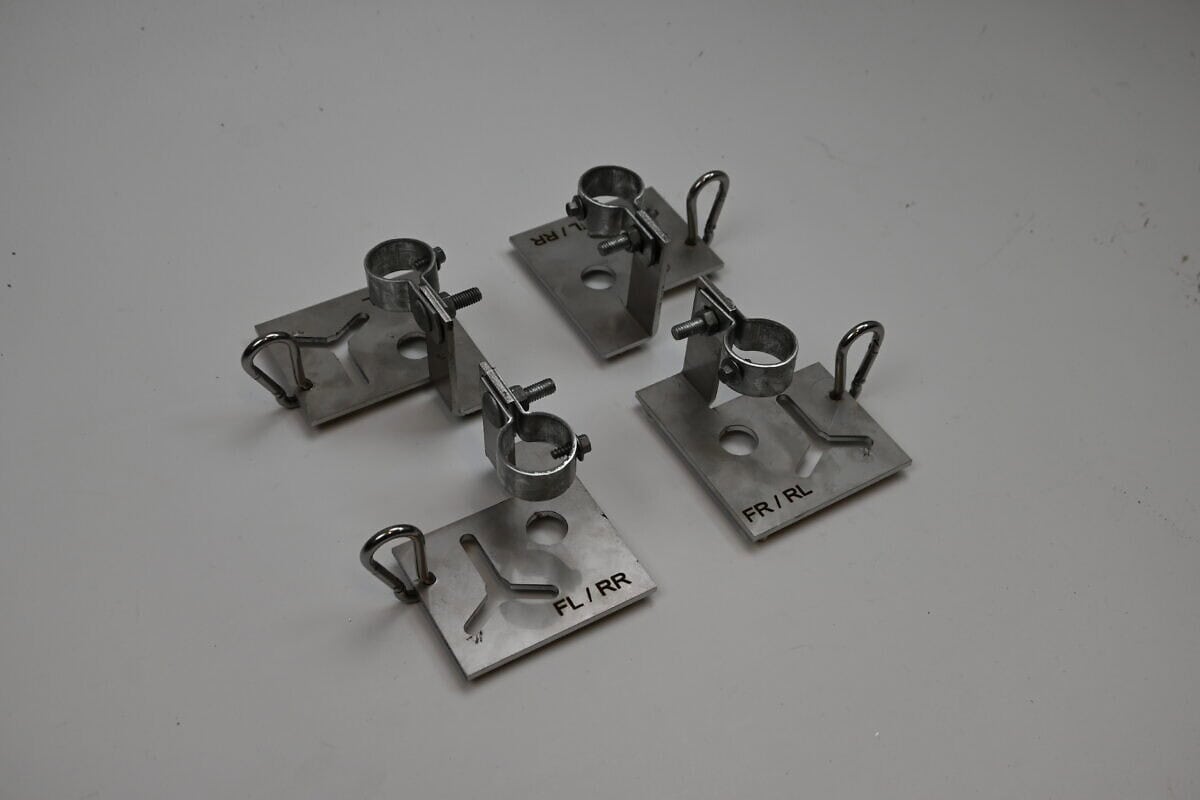

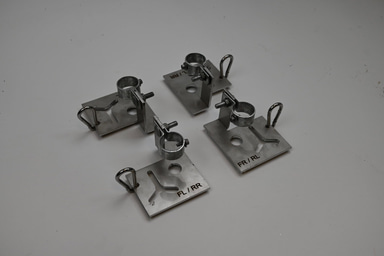

H1. 2 x Star-Lock Anchor Plate 150mm x 130mm x 3mm | FL/RR Types
H2. 2 x Star-Lock Anchor Plate 150mm x 130mm x 3mm | FR/RL Types
I. 4 x Yellow Post Cap
