SpinNet.SD Overhead Irrigation Kit

SpinNet.SD Overhead Irrigation Kit | Caterpillar Tunnel Add-ons

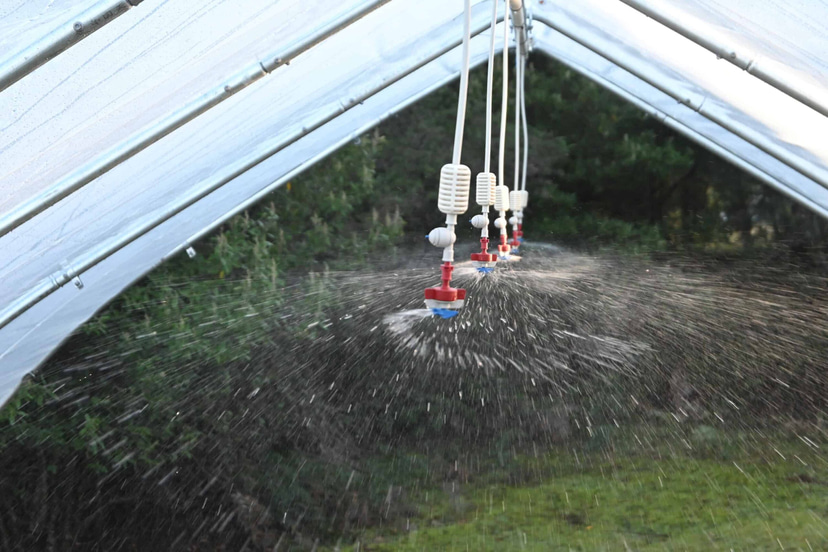

SpinNet™ inverted emmiters are the perfectly suited solution for overhead irrigation in all Caterpillar Tunnels variants

The Basic kits comes with:

• SpinNet™ overhead inverted sprinklers with anti-drip valve and 450mm hanger, enough for attaching every 900mm of tunnel length
• 20mm Flush valve
• 25mm White ldpe tubing, enough for the tunnel length
• 1 x 5m Black ldpe tubing
• 4 x 25mm Poly directors with 20mm bsp thread
• 1 x 25mm Poly directors with 25mm bsp thread
• 1 x 25mm Poly elbow
• 1 x 19mm Poly Ball Valve
• 7 x 25mm Stainles Steel Clamps
• 300mm x 4mm UV resistant cable ties, enough for 45cm spacing on all tubing

Features

Our Basic Kit will provide you with:

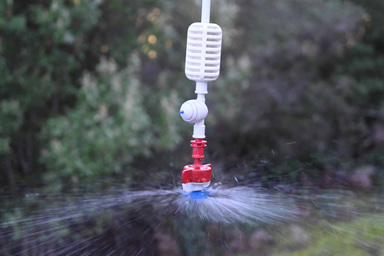

• SpinNet™ inverted sprinklers, designed for ideal irrigation with the Caterpillar’s width range. The required number for your tunnel length
• Connected to anti-drip valves and 45cm hangers
• Attached to the 25mm white, double layered  Netafim tubing, designed for this pupose.
• The tubing is attached to your purlin by the 300mm UV resistant cable ties every 45cm.
• We have provided a Toro flush valve to keep your system clean.
• All connectors are highest quality Poly fittings for extended life, to be clamped with Stainless Steel Clamps

For attaching to your water source the start of your kit includes;

• Both a 25mm or 19mm male threaded poly director.
• that is clamped into the 25mm ldpe black tubing.
• Stainless steel reusable clamps are provided

We provide an additional 2 x 25mm poly directors with 20mm male threaded ends so that you can add our Poly Ball Valve,  35psi pressure regulator and choice of disc or mesh filter (all sold separately) if your system requires.

Often purchased with;

• Netafim 36psi (2.5bar) Pressure Regulator | 20mm F x F
• 20mm Arkal Disc Filter or,
• 20mm Rivulus Mesh Filter
