Cross Bracing Trellis / Header Pole Kits
$19.00—$22.00AUD gst excl.
2300mm x 32mm Galvanised tube steel trellis (with 2 x 32mm or 35mm diameter brace bands and bolts) for use with the narrow and wide Cocoon Pro and Gothic Standard series variants

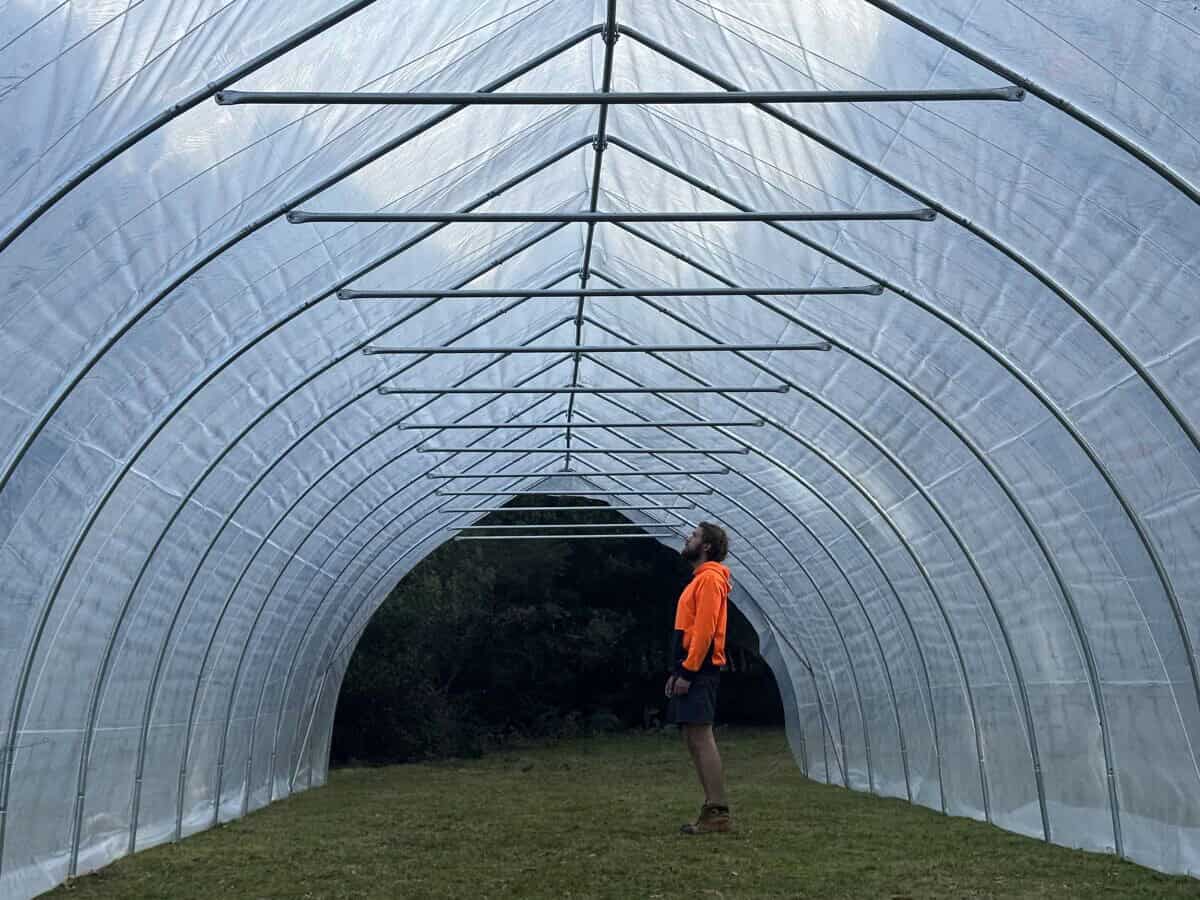

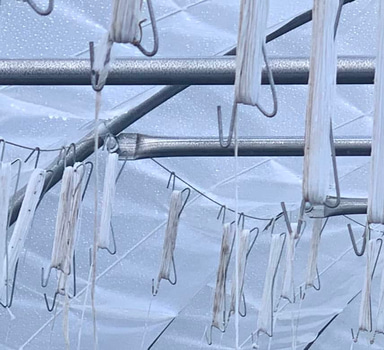

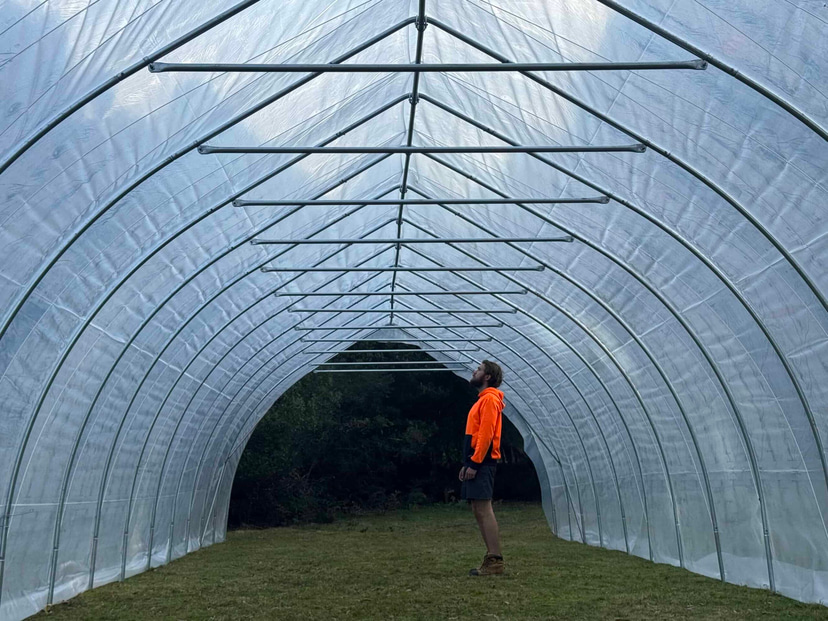

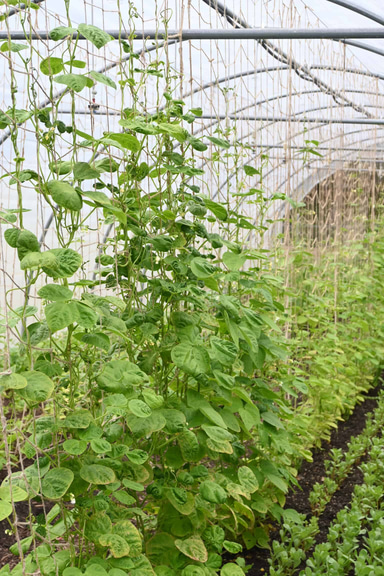

Cross Bracing Trellis / Header Poles give added dimension and bracing strength to your Cocoon Pro or Gothic Standrd series Caterpillar Tunnel. Support vertical growing of indeterminate crops and create a cool season solar passive germination space! Can be used to support trellis wires without needing the trellis wire hangers.
Brace band diameter
Brand Catalogue
Cross Bracing Trellis / Header Pole Kits – Caterpillar Tunnel Add-ons
Positioned between 2100mm and 2500mm above ground level depending on Caterpillar tunnel variant
How many Cross Bracing Trellis Poles do you need?
- We recommend one per hoop for supporting a heavy crop of indeterminate tomatoes, or for use in higher wind or snow prone areas.
- Note: Sliding Door End Wall Kits do not include Cross Bracing Trellis Poles (called Header Poles). If you tunnel does not have cross bracing poles you will require one Header Pole per end wall.
How are they shipped?
- Shipping is free to freight depots in eastern Australian capital cities and some regional cities when purchased with a Cocoon Tunnel. Additional freight charges apply to other areas.
Hoops per Caterpillar Tunnel (1500mm Hoop spacing):
7.5m (6 Hoops) options;
- 4 pole, one each end plus every second hoop
- 6 pole, one for every hoop
15m (11 Hoops) options;
- 6 pole, one each end plus every second hoop
- 11 pole, one for every hoop
20m (14 Hoops) options;
- 7 pole, one each end plus every second hoop
- 14 pole, one for every hoop
30m (21 Hoops) options;
- 11 pole, one each end plus every second hoop
- 21 pole, one for every hoop
40m (28 Hoops) options;
- 14 pole, one each end plus every second hoop
- 27 pole, one for every hoop
Hoops per Caterpillar Tunnel (1250mm Hoop spacing):
7.5m (7 Hoops) options;
- 4 pole, one each end plus every second hoop
- 7 pole, one for every hoop
15m (13 Hoops) options;
- 7 pole, one each end plus every second hoop
- 13 pole, one for every hoop
20m (17 Hoops) options;
- 9 pole, one each end plus every second hoop
- 17 pole, one for every hoop
30m (24 Hoops) options;
- 13 pole, one each end plus every second hoop
- 24 pole, one for every hoop
40m (33 Hoops) options;
- 17 pole, one each end plus every second hoop
- 33 pole, one for every hoop
