Wind Bracing Kit
$224.30—$258.11AUD gst excl.
Wind Bracing Add-on kits to suit 1500mm and 1250mm hoop spacing. Add strength and rigidity to your Caterpillar Tunnel, buffering the force of winds.
Select option
Brace band diameter
Brand Catalogue
Supplied with all Caterpillar Pro and Gothic Standard Tunnels and optional for the Cocoon Standard Tunnels as an upgrade.
Additional Wind Bracing can be added to the centre of your tunnel’s length. Essentially making your tunnel two tunnels butted up together, a second set of Wind Bracing can enhance the strength of longer tunnels, 20m and above.
Required for use with:
- Cross Bracing
- End Wall Kits
- Trellis Cable Kits
Wind Bracing Kit options
To suit: 1500mm Caterpillar Tunnel hoop spacing:
- Consists of 8 x 1800mm x 32mm galvanised tube steel and 16 galvanised brace bands.

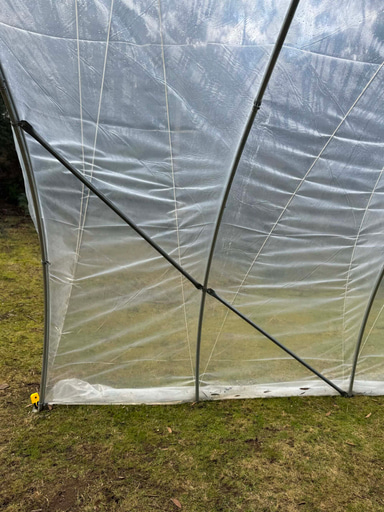

- Attaches in two sections to the end three hoops at either side of the tunnel and at both ends.
To suit: 1250mm Caterpillar Tunnel hoop spacing:
- Consists of 8 x 1650mm x 32mm galvanised tube steel and 16 galvanised brace bands.
- Attaches in two sections to the end three hoops at either side of the tunnel and at both ends.
For both options:

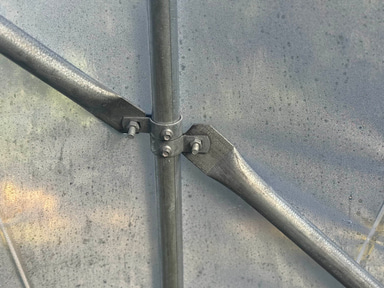

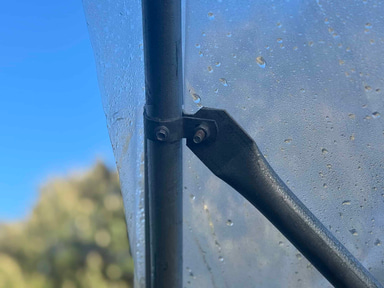

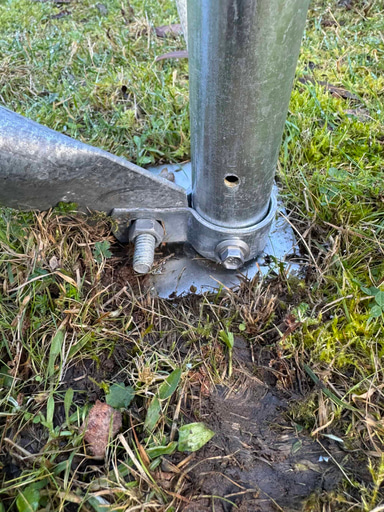

- Each section is attached to the hoop with a galvanised steel brace band, designed for ActiveVista’s Caterpillar Tunnel series.
- Supplied as standard with all Caterpillar Pro Tunnels and Gothic Standard Tunels and optional with the classic Cocoon Standard Tunnels as an upgrade.
For longer tunnels:
- Consider adding a second set of Wind Bracing to the centre of your tunnel’s length. Essentially making your tunnel two tunnels butted up together, a second set of Wind Bracing can enhance the strength of longer tunnels, 20m and above.
