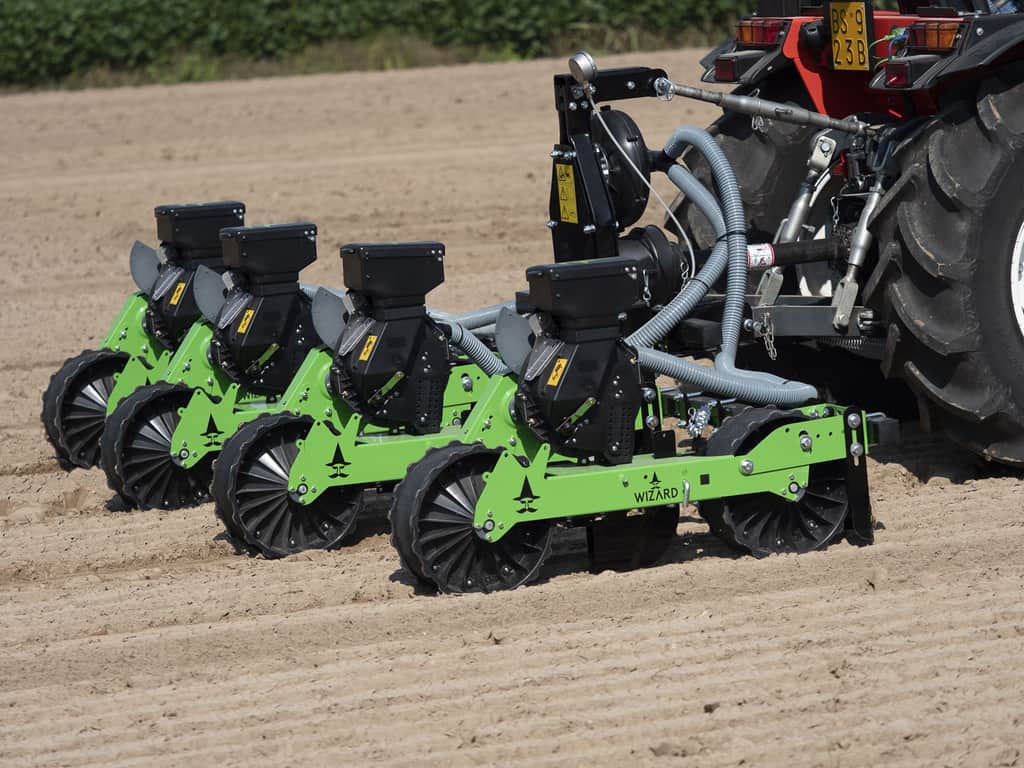

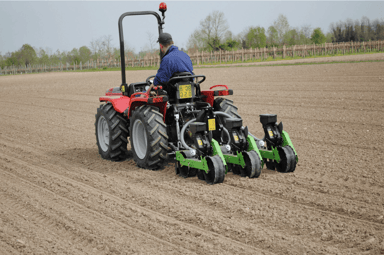

WZ-D Series | Vacuum Precision Seeders

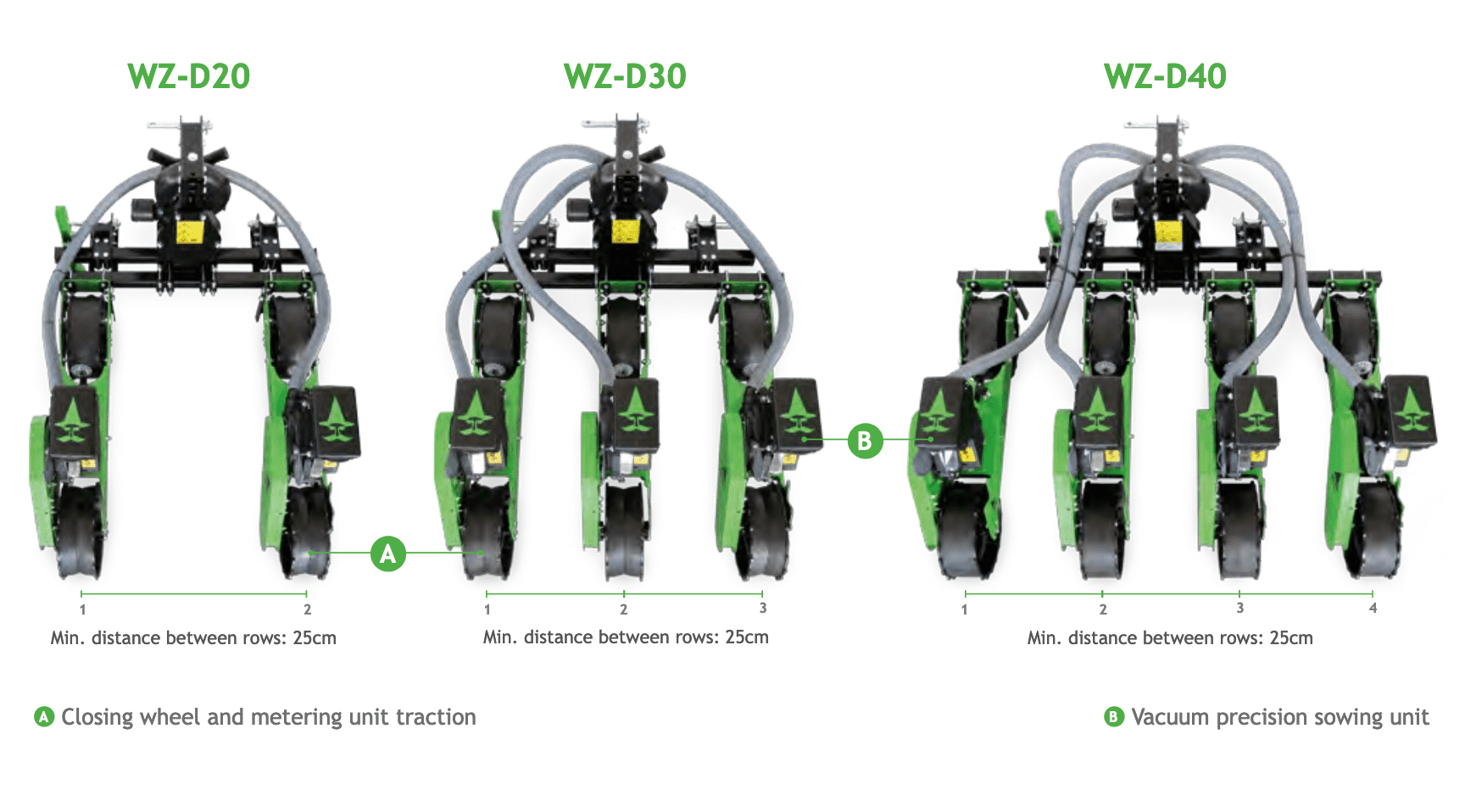

The WZ-D series consists of 1 up to a maximum of 5 sowing units,  inter row spacing from 25 cm

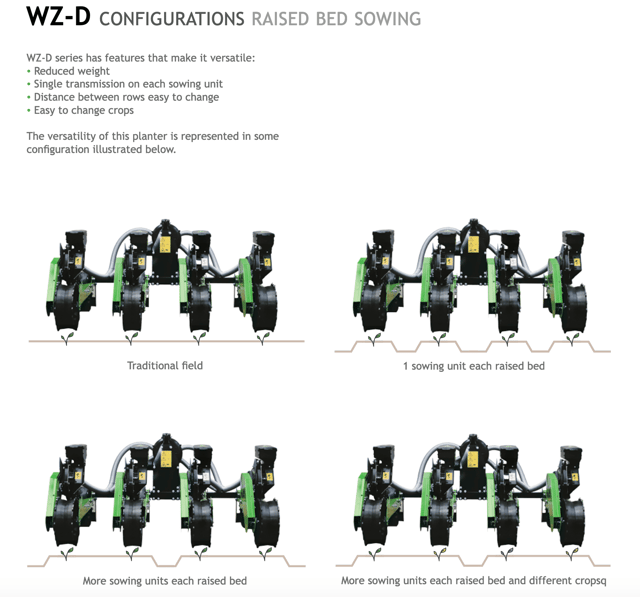

• Suitable either for sowing on open field and on raised bed
• Suitable for for tractors approx. 50 HP (15-90 HP) up to 4kph
• Independent gear boxes on each seeder allow speed variability while maintaining precision
• Delivery of stocked items ex Aust ActiveVista warehouse, Australia wide 10-17 days,  New Zealand 14-21 days

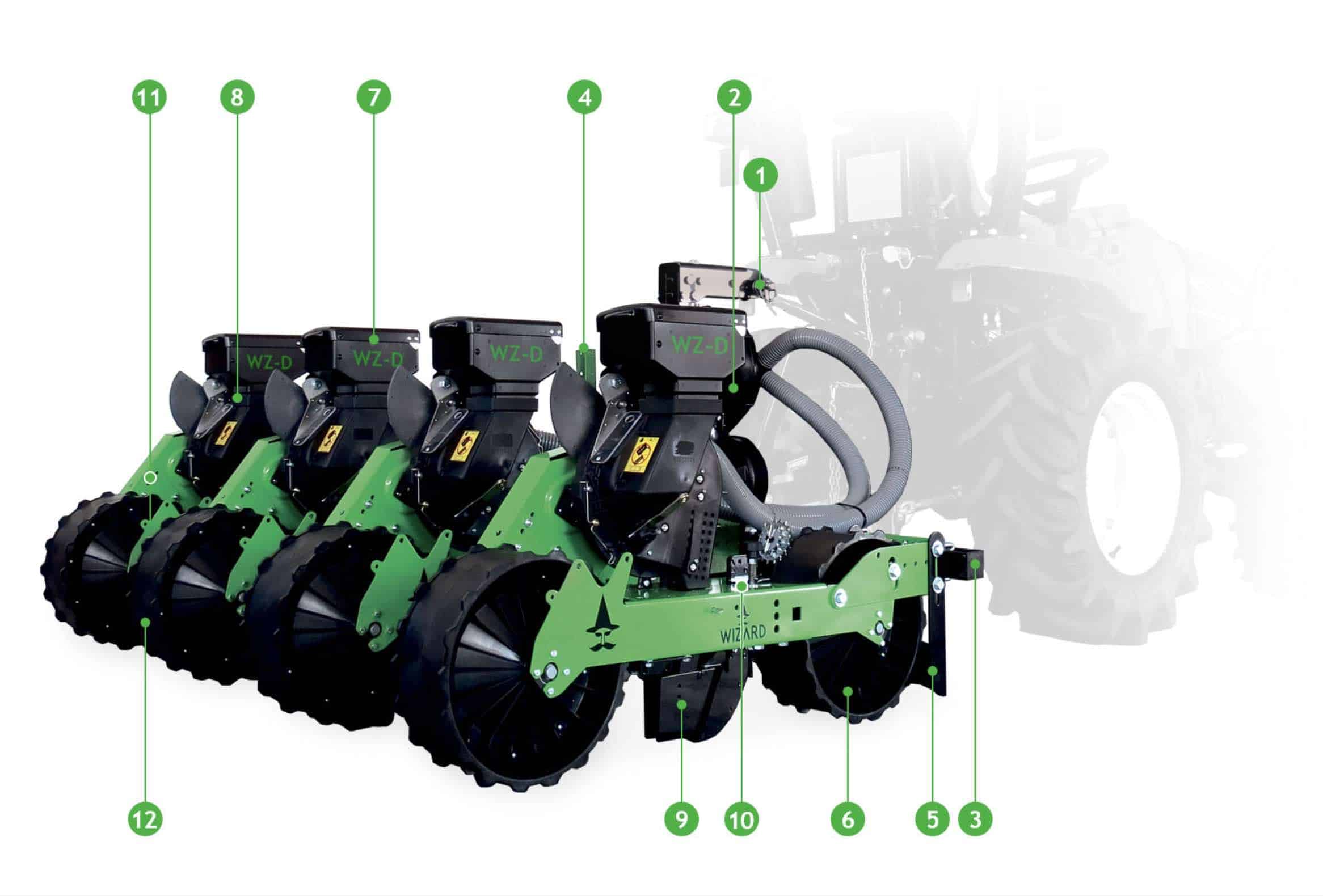

STANDARD EQUIPMENT

• 1. Three point linkage – CAT.1 and CAT.2
  2. Vacuum fan
  3. Chassis/Toolbar
  4. Parking stand
  5. Clod remover
  6. Soil leveler wheel
  7. Sowing vacuum metering unit
  8. 3 litre seed hopper
  9. Shoe opener and seed tube
  10. Screw Sowing depth adjustment
  11. Gearbox for seeding distance adjustment
  12. Heavy closing wheel and metering unit traction

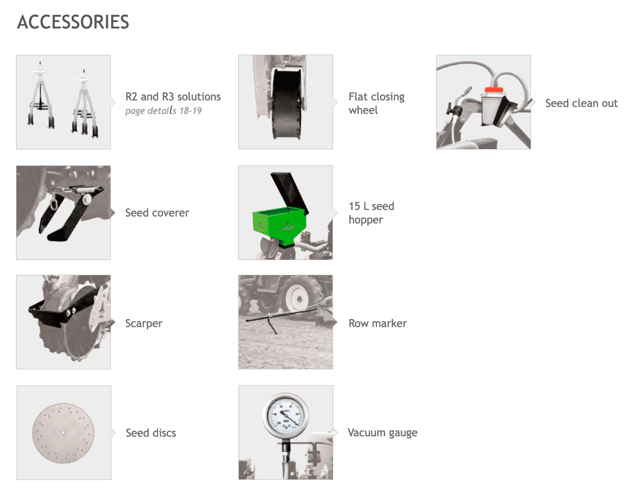

OPTIONAL FEATURES

• Seed discs: Single line (DS-1 and DSS type), Two line (DS-2), Three line (DS-3)
• R2/R3 Multi-line sowing kit: Two and three row seed dispenser kits including specialised seed shutes and plow shoe

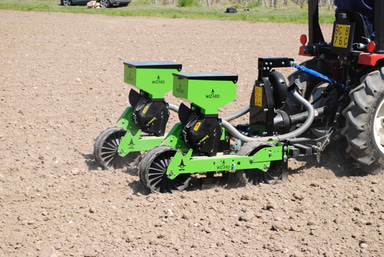

• 15 Litre seed hopper: Provides added sowing duration for larger seed
• Seed Clean-Out kit: Recommended for small seed, vacuum powered
• Scraper for closing wheel: Recomended for sowing in damp soil conditions
• Double disc opener shoe: (Single line only) Recommended for clumpy soil and for displacing residues
• Single line seed coverer kit: Assists seed-soil contact with smaller seed
• Flat closing wheel (required for R2/R3): Also recommended with single row seeding in clumpy soil
• Vacuum guage kit: Recommended for 3 or more units or when tractor is less than 30hp
• Row marker: For use with open field sowing

WZ-D CUSTOMISED

We can warehouse fit your chosen options before sending or send them for you to add on as required. Please refer to the WZ – Accessories page here

Click on images to enlarge
