Buy any Caterpillar Tunnel and get a 10% discount on a second or further tunnels, calculated at the checkout.
Free shipping is included for add-on kits when purchased with a Caterpillar Tunnel.

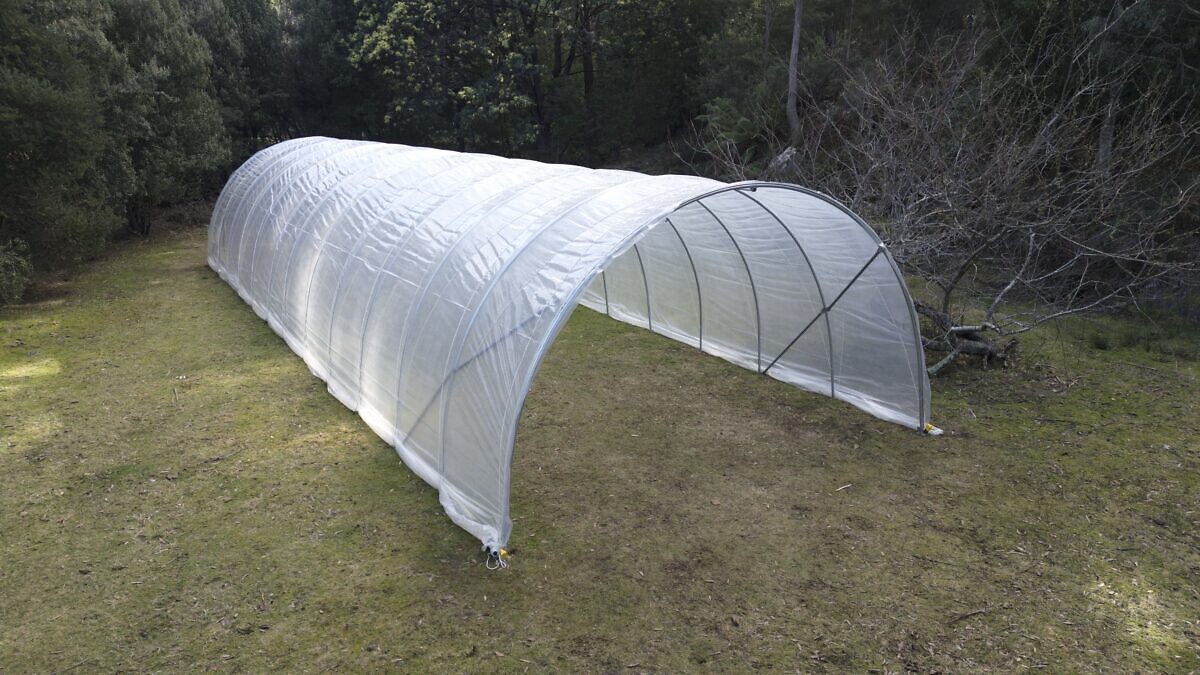

Cocoon Caterpillar Tunnels
$2,530.00—$9,196.00gst incl.
Length
Hoop Spacing
Variant
Width
Categories
Tags
From the tropics to the snow, everything grows better in a Caterpillar Tunnel
Low or high crops, dry season or wet. You control the environmental inputs.
Caterpillar Tunnels for commercial cropping or the home gardener gives you the environmental edge without the cost footprint.
Low per metre cost, easy set up and movability put you ahead of the game from the first season!
Contact us today to discuss your requirements.
COMPARISON CHARTS
| SPECIFICATION | COCOON | COCOON PRO | GOTHIC | GOTHIC PRO |
| Tunnel height | 2.35m | 2.75m | 2.8m | 3.2m |
| Height w/ Lift Kit | 2.75m | Lift Kit included | 3.2m | Lift Kit included |
| Tunnel width options | 4.35m/4.9m | 4.35m/4.9m | 4.9m | 4.9m |
| Centre Purlin type | 25mm poly strap | 32mm tube steel | 32mm tube steel | 32mm tube steel |
| Cross Bracing height | NA | Optional | 2.1m | 2.5m |
| Hoop steel thickness 4.35m width | 1.5mm | 1.5mm | N/A | N/A |
| Hoop steel thickness 4.9m width | 2.0mm | 2.0mm | 2.0mm | 2.0mm |
| Hoop width (O.D) | 32mm | 32mm | 32mm | 32mm |
| Greenhouse film | 180um diffused | 180um diffused | 180um diffused | 210um diffused |
| Assembly time (2 people) | 3+ | 7+ | 8+ | 10+ |
| 7.5m -40m
PDF GUIDES | 4.35m width
1.25m hoop spacing | 4.35m width
1.5m hoop spacing | 4.9m width
1.25m hoop spacing | 4.9m width
1.5m hoop spacing |
| Cocoon | 4.35m W. 1.52m hoop spacing | 4.35m W, 1.5m hoop spacing | 4.9m W. 1.25m hoop spacing | 4.9m W, 1.5m hoop spacing |
| Cocoon Pro | 4.35m W, 1.25m hoop spacing | 4.35m W, 1.5m hoop spacing | 4.9m W, 1.25m hoop spacing | 4.9m W, 1.5m hoop spacing |
| Gothic | N/A | N/A | 4.9m W, 1.25m hoop spacing | 4.9m W, 1.5m hoop spacing |
| Gothic Pro | N/A | N/A | 4.9m W, 1.25m hoop spacing | 4.9m W, 1.5m hoop spacing |
| ATTRIBUTE | COCOON
STAND’ 4.35m W | COCOON
STAND’ 4.9m W | COCOON
PRO 4.35m W | COCOON
PRO 4.9m W | GOTHIC
STAND’ 4.9m W | GOTHIC
PRO 4.9m W |
| 7.5m – 40m variants | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| Star-Lock Anchoring System | Optional | Optional | ✔️ | ✔️ | ✔️ | ✔️ |
| Lift Kit | Optional | Optional | ✔️ | ✔️ | Optional | ✔️ |
| Wind Bracing | Optional | Optional | ✔️ | ✔️ | ✔️ | ✔️ |
| Cross Bracing Trellis Poles | ❌ | ❌ | Optional | Optional | Optional | ✔️ |
| Side Curtain Hooks | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ |
| 180um Greenhouse Film | ✔️ | ✔️ | ✔️ | ✔️ | ✔️ | ❌ |
| 210um Greenhouse Film | ❌ | Optional | Optional | Optional | Optional | ✔️ |
| Locking Channel for end hoops | Optional | Optional | ✔️ | ✔️ | ✔️ | ✔️ |
| End Walls | Optional | Optional | Optional | Optional | Optional | Optional |
| End Hoop Purlin Brace Kit | Optional | Optional | Optional | Optional | Optional | Optional |
| Hoop Felt for extended film life | Optional | Optional | Optional | Optional | Optional | Optional |
| Trellis Cable Kits | ❌ | ❌ | Optional | Optional | Optional | Optional |
| Overhead Irrigation Kit | Optional | Optional | Optional | Optional | Optional | Optional |
| Shade Cover Kit | Optional | Optional | Optional | Optional | Optional | Optional |
